1. Log in to the Kuika platform.
2. Open the relevant project from the Apps screen.
3. Go to the UI Design module and open the Properties panel on the right.

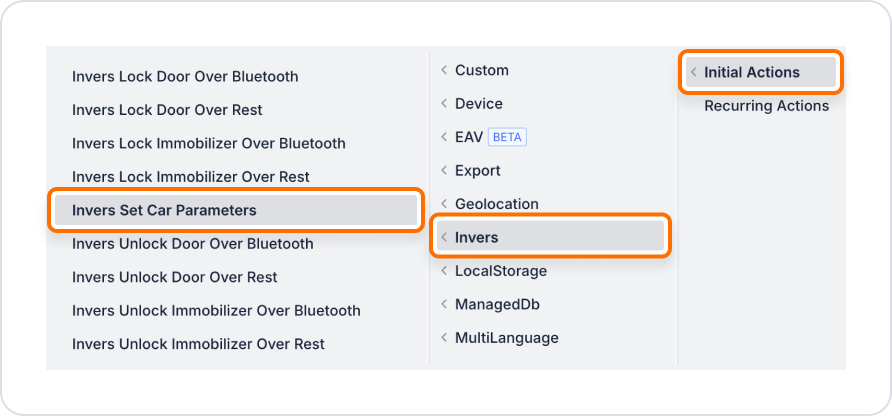

4. From the + ADD ACTION menu, add the Invers > Invers Set Car Parameters action according to the desired trigger event (Initial Actions, OnClick, OnBlur, etc.).

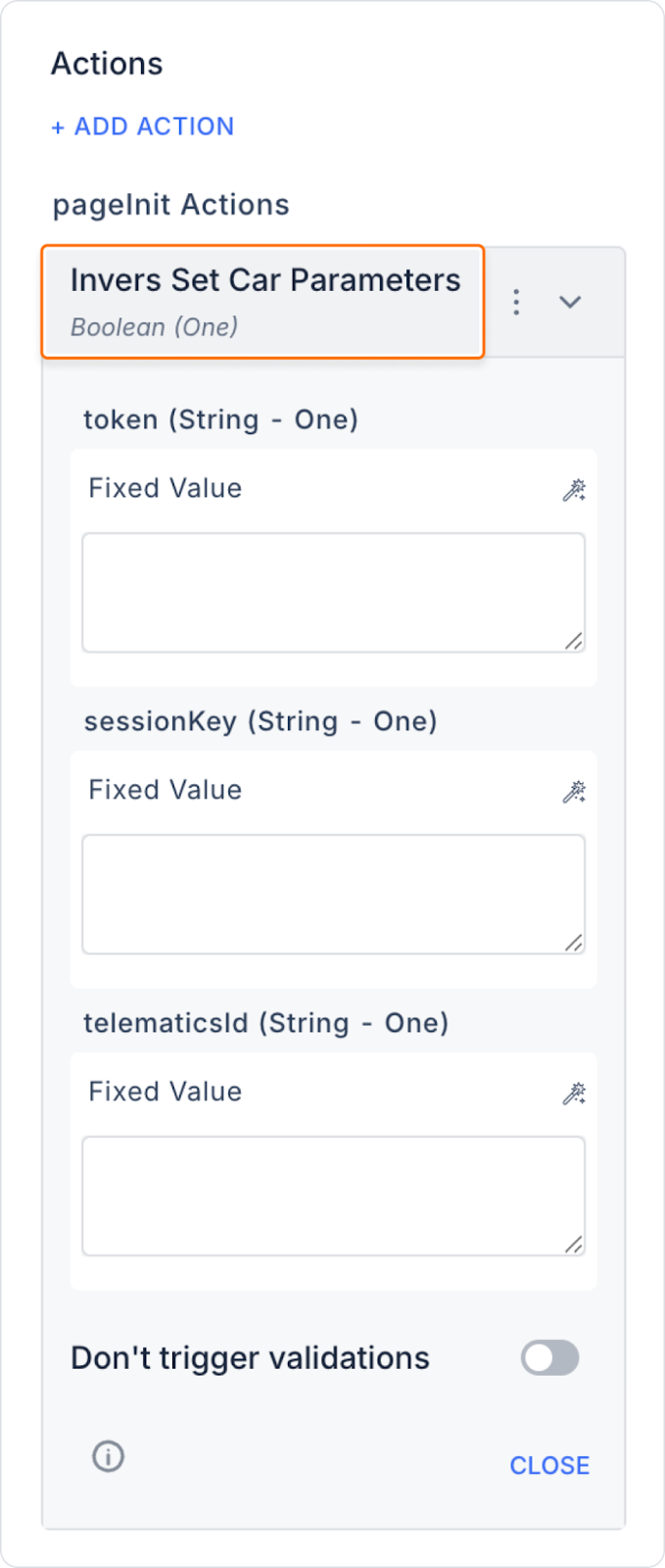

Parameter Configuration

• Token: Used for user session authentication for API calls.
• Session Key: The key that enables secure communication between the application and the server.
• Telematics ID: The unique telematics system ID number of the vehicle to be configured.

For example, when the user wants to switch between different driving modes or change the climate settings through the application, this action updates the parameters instantly.

Project Addition and Usage Steps

1. Add the Onclick→ Invers → Invers Set Car Parameters action from the + ADD ACTION menu to the relevant element.
2. Dynamically link the Token, Session Key, and Telematics ID fields to the relevant data sources.

Usage Flow

• The user uses the relevant control in the application to change the settings.
• The action sends the parameters to the vehicle via the REST API.
• The vehicle parameters are updated and the user is notified of the result of the operation.

• Dynamic Parameters: Token and Session Key can be automatically retrieved based on the user session.
• Feedback Mechanism: Instant feedback can be displayed in the application after parameter changes.
• Role-Based Control: Only authorized users can change parameters.

Technical Risks

• Security: Token and Session Key must be stored securely and protected against unauthorized access.
• Connection Continuity: In case of an internet connection interruption, the process should be canceled or retried.
• Correct Telematics ID: If an incorrect ID is entered, parameters may be applied to the wrong vehicle; verification should be performed.

In this way, you can use the Invers Set Car Parameters action securely and effectively on the Kuika platform.
