Google Map Get Geocode

2/10/25
Google Map Get Geocode

The Google Map Get Geocode action is used to convert a given address into geographic coordinates (latitude and longitude). When a user enters an address, the Google Maps API returns the latitude and longitude information for that address. It is used in map-based applications for address validation, location-based search, or route calculation.

Technical Specifications

  • Function: Address → Coordinate conversion (Geocoding).
  • Parameters
    • settings (Object – required): Settings required for Google Maps integration.
    • address (String – required): Address information to be converted. (E.g., “Istiklal Caddesi, Beyoğlu, İstanbul”).
  • Result: Single (One) → Returns the latitude and longitude information for the relevant address.
  • Value Binding:
    • A fixed value can be entered.
    • It can be obtained dynamically from user inputs (e.g., TextInput).
  • Web & Mobile Support: Works in both web and mobile applications.

Google Map Get Geocode Application Steps

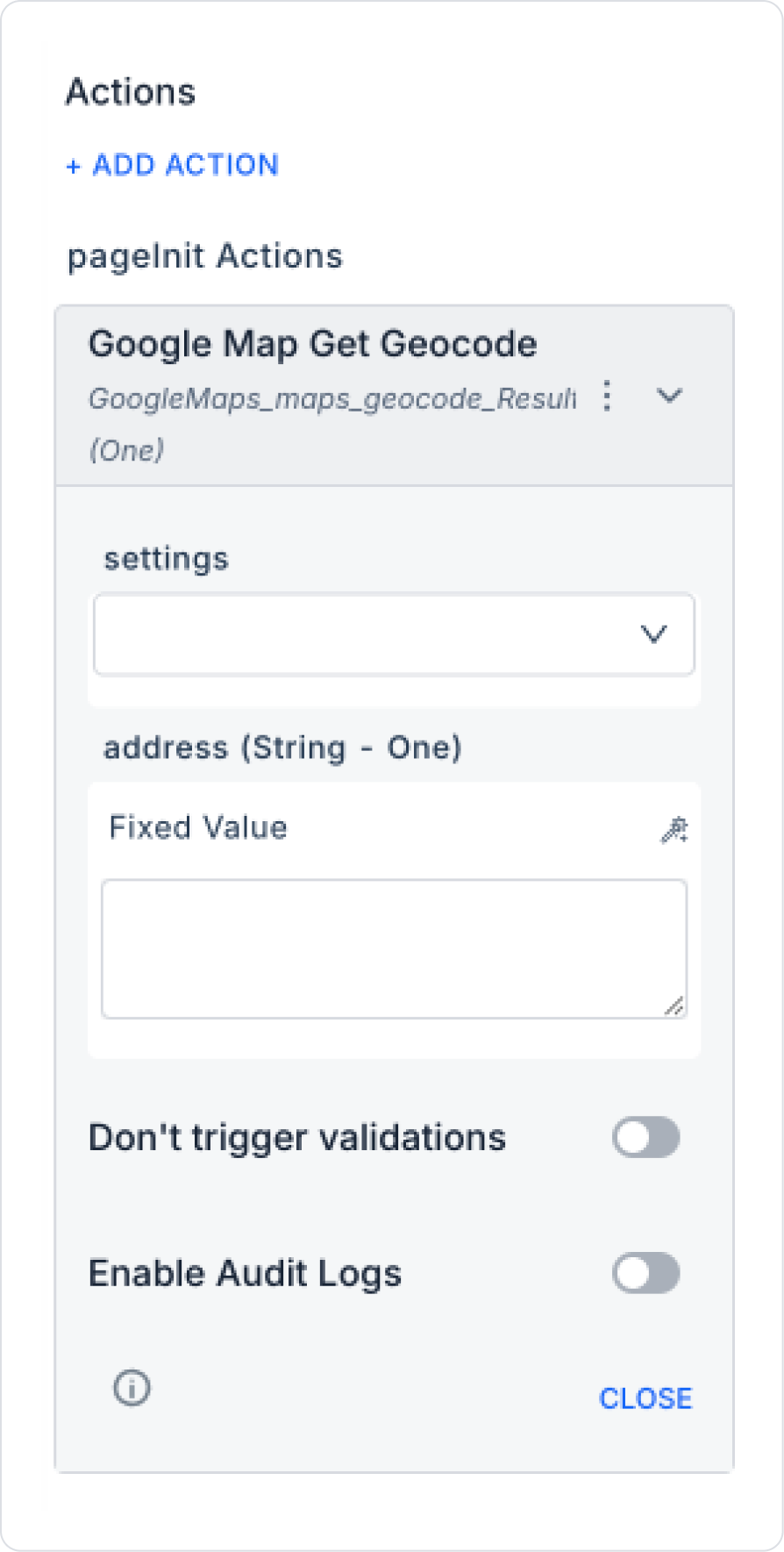

1. Adding an Action

  • Go to the screen in your Kuika project where the address needs to be converted to a location.
  • UI Design → + ADD ACTION → Google → Google Map Get Geocode Add the action.

2. Configuring Parameters

  • settings: Google Maps settings are selected.
  • address:
    • Fixed usage → “Ankara, Turkey”.
    • Dynamic usage → The address entered by the user in the form is linked here.

Usage Scenario: “Address → Coordinate Conversion”

In a delivery application, when a customer's address is received, coordinate information is needed to mark this address on the map.

Steps:

  1. The user enters the address as “Ankara, Kızılay”.
  2. Google Map Get Geocode runs.
  3. Result returned: “39.9208, 32.8541”.
  4. These coordinates are marked on the Map.

Google Map Get Geocode Advanced Customizations

  • Dynamic Form Usage: Geocoding can be performed automatically for any address entered by the user.
  • Route Preparation: The returned coordinates can be transferred to the Google Map Directions or Distance Matrix action.
  • Verification: You can check whether the address is registered in the system.

Technical Risks and Controls

  • If the address is entered incorrectly or is missing, the correct coordinates may not be found.
  • If there are different areas with the same name (e.g., “Atatürk Caddesi”), incorrect results may be returned.
  • An error may occur if Google Maps API quota limits are exceeded.
