The Trello List Boards action is used to retrieve a list of all boards belonging to a Trello user. This action allows your application to dynamically display existing boards in Trello. It is particularly preferred in project management, task organization, and user board selection scenarios.

Technical Specifications

• Get Board List: Returns all Trello boards belonging to the user.
• Parameter Compatibility:

  • settings (Object – required): Configuration information required for Trello integration.
• Value Binding: A fixed value can be assigned to the parameter, or dynamic values can be bound via the Symbol Picker.
• Multiple Results: Boards are returned as a list (Many).
• Web & Mobile Support: Works seamlessly on both web and mobile applications.

Trello List Boards Action Application Steps

1. Defining the Action in UI Design

• Open your project on the Kuika platform.
• In the UI Design module, select the screen where you want to display the board list.
• Add a button (e.g., “List Boards”).

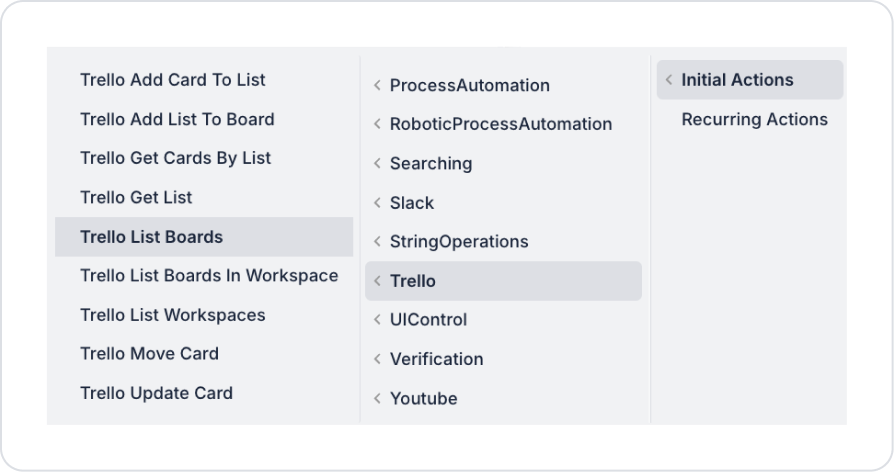

• Select the button and add the OnClick → Trello → List Boards action from the + ADD ACTION menu.

2. Configuring Parameters

• settings (required): Select the defined settings for Trello integration.

Use Case: Show All Boards to the User

In a project management application, the user can list all their boards in their Trello account and access details by selecting one of these boards.

Steps:

1. Add a button in UI Design: “List Boards”.
2. Add the OnClick → Trello → Trello List Boards action.
3. Display the returned board list in a Table element.
4. When the user selects a board, retrieve the lists on that board by binding the selected boardId value to the Trello Get List action.

Trello List Boards Advanced Customizations

• Dynamic Selection: Lists or cards can be loaded automatically when the user selects one of the boards.
• Chain Usage: Rotating boardId values can be passed to actions such as Trello Get List or Trello Add List To Board.
• Filtering: Boards can be filtered by name or creation date.

Technical Risks and Controls

• The settings parameter must not be empty.
• If the user has no boards in their Trello account, an empty result is returned.
• API access permissions must be configured correctly.
