Kuika's Location Search element allows users to find a specific location on a map. The user types in the name of the place they want to search for, and the system marks that location on the map. It is used in scenarios such as venue search, route determination, or location-based listing.
The Location Search element can be used in both web and mobile applications.
Areas of Use
Address or venue search in map-based applications
Route creation and destination setting
Finding nearby businesses, cafes, or hotels
Location-based data filtering

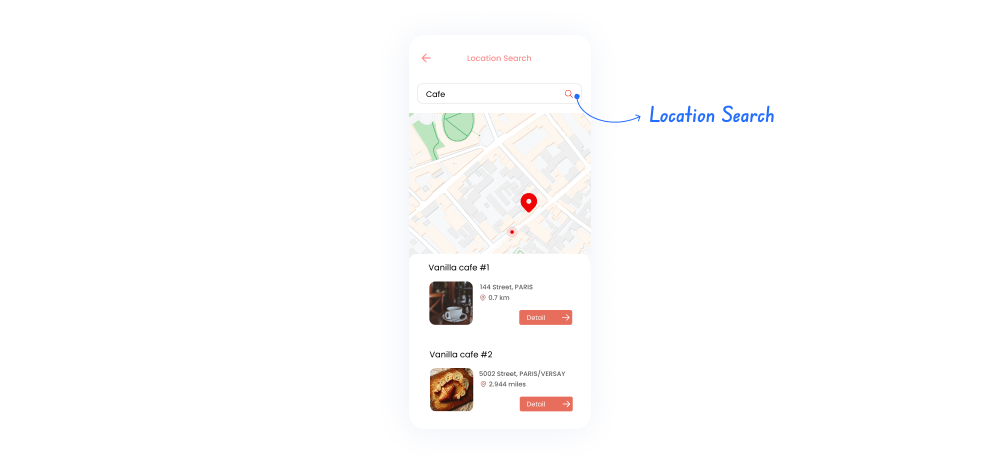

Use Case – Cafe Search
In a mobile application, a user uses the Location Search element to find cafes near their current location.
In the scenario:
The user sees a search bar titled “Location Search” at the top of the screen.
When they type the word “Café,” the nearest cafes are listed on the map.
A red pin (location marker) appears on the map.
The search results are displayed as a list at the bottom:
“Vanilla Cafe #1” → 144 Street, Paris
“Vanilla Cafe #2” → 5002 Street, Versailles
The user can click on a result to be redirected to the details page.
UI Design Module Operations
Go to the UI Design module.
From the Elements > Select Input category on the left sidebar, drag and drop the Location Search element.
In the Properties panel, configure the following settings:
Placeholder: “Search location or address”
Allow Clear: Active (users can clear the text with a single click)
Value: Can be statically set to “Café” or dynamically linked to a variable from the Symbol Picker.
Optionally, add a Map View element and synchronize it with Location Search:
Search results are marked on the map.
The selected result is centered on the map.
Using Properties in a Scenario Context
Placeholder: Shows the user what information to enter (e.g., “Search location or address”).
Allow Clear: Adds a function to quickly clear the entered text.
Value: Displays the search term entered by the user or received dynamically.
When the Scenario is Complete
The user searches for nearby cafés by typing “Café”.
The search result is displayed with a pin on the map.
The café list in the lower section is updated dynamically.
The user can click on a café to go to the details page.
Limitations
Location Search requires an internet connection and a Google Maps API key.
When not used with a map, it only displays text-based results.
Search results may be limited on mobile devices if GPS permissions are not granted.
Tips and Best Practices
Use descriptive placeholders for clear user guidance (“Search nearby cafés, hotels, or shops”).
Highlight the location pin on the map with bold colors.
Displaying search results in list format enhances the user experience.
Keep the Allow Clear feature enabled to enable quick repeat searches.
