User Manual

Date Range Usage Scenario

Date Range Usage Scenario

Kuika's Date Range element is a component that allows users to select start and end dates simultaneously. This feature provides a reliable solution wherever a date range is needed, such as in reservation systems, project planning, and reporting screens.

The Date Range element is supported in both web and mobile applications.

Areas of Use

  • Date range selection on hotel reservation or flight search screens,
  • Task start and end dates in project planning,
  • Filtering on reporting screens (e.g., between 09/01/2025 and 09/07/2025),
  • Campaign and discount validity periods, etc.

Flight Period Selection Use Case

1. Static Use Case – Fixed Date Range

In an airline ticket reservation application, users need to see data for a specific date range. In static use, the date range is fixed and cannot be changed by the user.

Using the Features

  • Start Value → 2023-11-15
  • End Value → 2023-12-08
  • Start Date Placeholder → “Select Start Date”
  • End Date Placeholder → “Select End Date”
  • Format → DD/MM/YYYY → 11/15/2023 – 12/08/2023
  • AllowClear → The user can clear the selections if they wish

When the Scenario Step is Complete

  • A fixed date range is assigned to the user.
  • The dates appear on the screen in the formatted manner.
  • If desired, the selection can be cleared with the (X) button.
  • The system only retrieves data for this fixed range.

Dynamic Usage Scenario – Reporting Date Range

In a financial reporting application, the user filters their reports by selecting a date range. The dates are linked to the data source.

Connecting the Data Source

  • Go to the Datasources module.
  • Then click the + icon next to the Tables heading and name the table “Reports”.

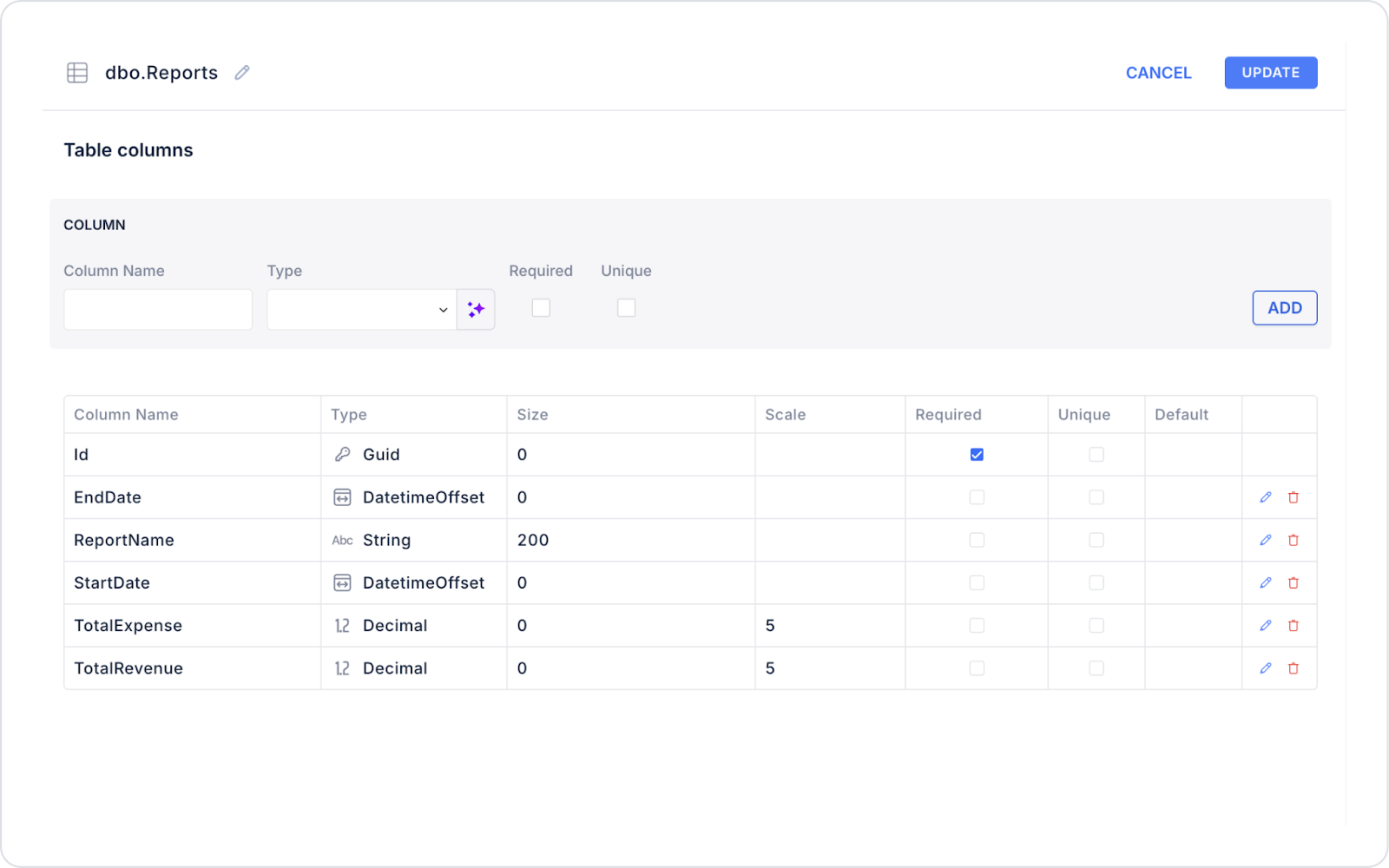

  • Create the following table.
  • Then click SQL Actions and name the action “Reports”. You can also create it with C#.
  • Enter the following SQL command.
SELECTReportName,StartDate,EndDate,TotalRevenue,TotalExpenseFROM ReportsWHERE StartDate >=2025-09-01AND EndDate <=2025-09-30ORDER BY StartDate ASC;

UI Design Module operations

  • Click the Add Action button on the right side of the application screen.
  • Then select Custom > Reports.

Using Properties

  • Start Value → Reports.StartDate (linked from Symbol Picker)
  • End Value → Reports.EndDate (linked from Symbol Picker)
  • Start Date Placeholder → “Select Start Date”
  • End Date Placeholder → “Select End Date”
  • Format → DD/MM/YYYY
  • AllowClear → User can clear selection

When Scenario Step is Complete

  • The user selects the start and end dates from the calendar.
  • The selected range is displayed on the screen in the formatted manner.
  • The user can clear the range using the (X) button if desired.
  • The dates are saved in the Reports.StartDate and Reports.EndDate fields.
  • The system filters the reports according to this range.

Limitations

  • Very wide date ranges may affect performance (e.g., when filtering across years).

Tips and Best Practices

  • Add controls on Start Value and End Value to limit past dates.
  • Always add placeholder text for user experience.
  • In reporting scenarios, you can set the default date range to this week or last 30 days.
